Dwight Ennis
Section Hand



Posted - 07/06/2015 :  11:05:45 PM  Show Profile  Visit Dwight Ennis's Homepage  Reply with Quote
I'm in need of an Icing Platform for my limited reefer fleet and managed to score a FSM Icong Platform kit off of eBay. However, after opening the kit and looking at the plans, it became apparent to me that, while John Allen was an incredible artist and Model Railroad builder, he was no mechanical engineer.

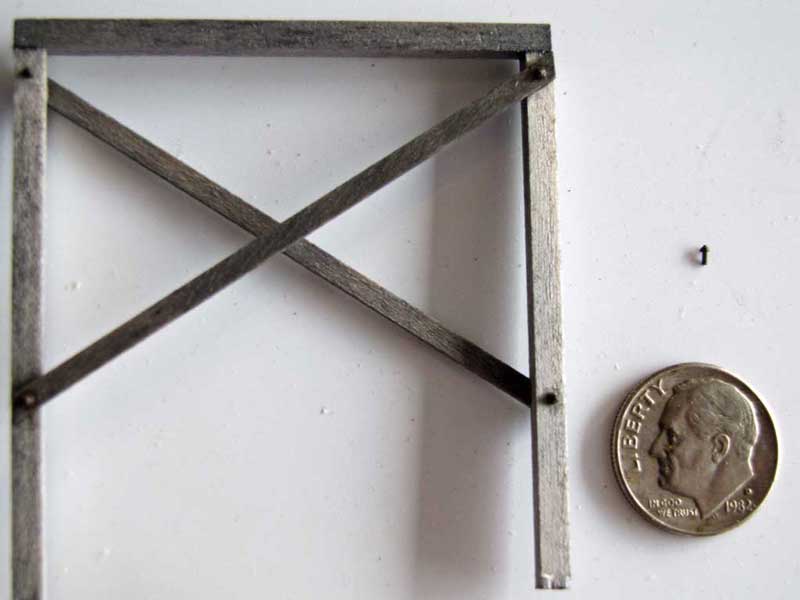

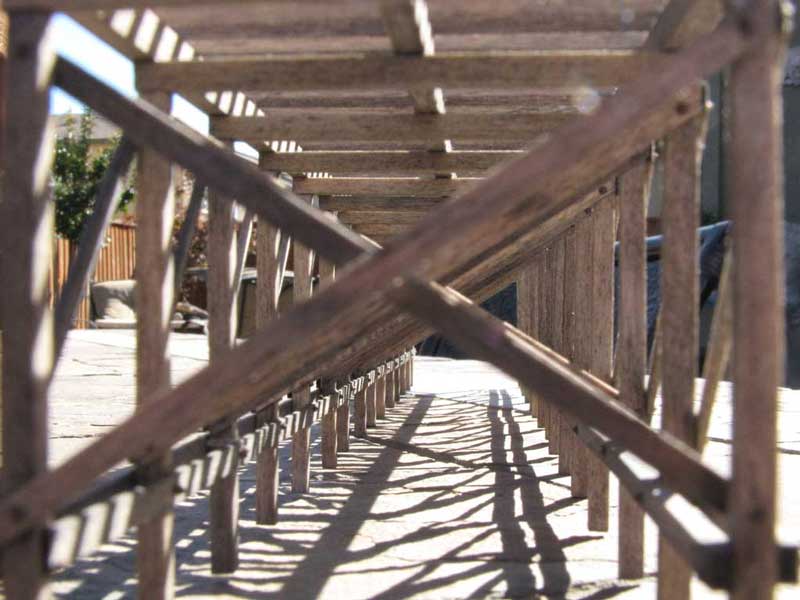

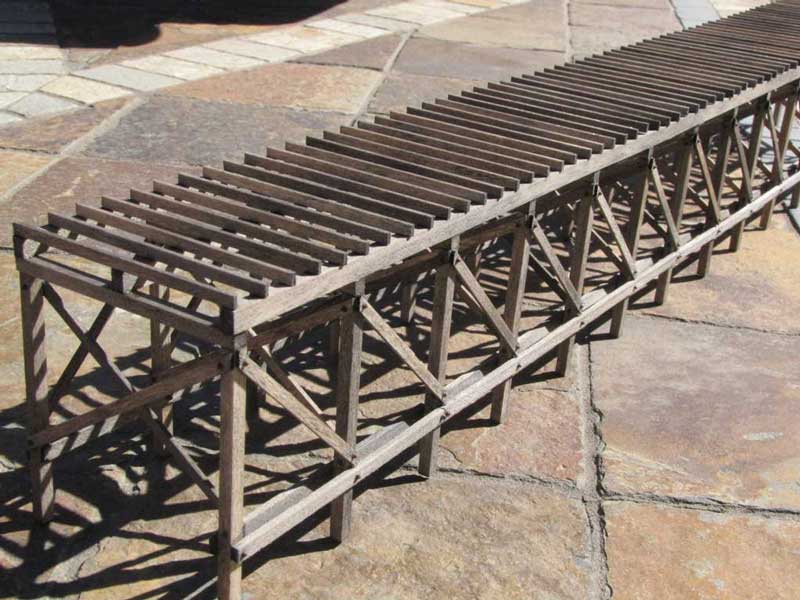

I therefore decided to redesign the "platform" section of the icing platform using more conventional building codes for adequate structural integrity. I also doubled it length. The structure is entirely scratch0built. With the exception of the decking boards, that section is finished. It contains 304 Grandt Line #98 NBW castings (little line above the dime)...









Since my platform is higher then the kit, I'm also having to scratch-build the Ice House. It's based upon the kit's Ice House, and is currently around half done.

Country: USA | Posts: 55

Ray Dunakin
Fireman



Posted - 07/06/2015 :  11:40:37 PM  Show Profile  Visit Ray Dunakin's Homepage  Reply with Quote
Wow, nice work, Dwight!



Country: USA | Posts: 3222 Go to Top of Page

NVNGRR
Engine Wiper

Premium Member


Posted - 07/07/2015 :  01:04:23 AM  Show Profile  Visit NVNGRR's Homepage  Reply with Quote
Dwight,

How are you doing these days? Nice to see you found your way over here to the RR Line forums. I've been hanging out here ever since I gave up the garden railway.

Beautiful job on the icing platform. It's the usual high quality I expect from you.


Kevin Miller
Winlock, WA

Country: USA | Posts: 362 Go to Top of Page

sgtbob
Fireman

Premium Member


Posted - 07/07/2015 :  07:47:33 AM  Show Profile  Reply with Quote
Dwight, Very nice job so far. I assume it's HO scale. I'll be following along with interest.

Cheers,
Bob


http://www.railroad-line.com/forum/topic.asp?TOPIC_ID=30102
http://www.railroad-line.com/forum/topic.asp?TOPIC_ID=51837

Country: USA | Posts: 3864 Go to Top of Page

jbvb
Fireman

Premium Member


Posted - 07/07/2015 :  08:18:35 AM  Show Profile  Visit jbvb's Homepage  Reply with Quote
Looks good, like it's seen quite a few years of service.


Country: USA | Posts: 5933 Go to Top of Page

George D
Moderator

Premium Member


Posted - 07/07/2015 :  08:19:10 AM  Show Profile  Reply with Quote
Nice neat work, Dwight.

George



Country: USA | Posts: 15234 Go to Top of Page

Dutchman
Administrator

Premium Member


Posted - 07/07/2015 :  09:12:18 AM  Show Profile  Reply with Quote
Beautiful work, Dwight. She looks structurally sound now.



Country: USA | Posts: 31311 Go to Top of Page

Dwight Ennis
Section Hand



Posted - 07/07/2015 :  10:13:05 AM  Show Profile  Visit Dwight Ennis's Homepage  Reply with Quote
quote:
Originally posted by NVNGRR

Dwight,

How are you doing these days? Nice to see you found your way over here to the RR Line forums. I've been hanging out here ever since I gave up the garden railway.

Beautiful job on the icing platform. It's the usual high quality I expect from you.



Hey there Kevin! Nice to bump into you! It's been a while. I be just fine! Semi-retired a year ago last May, and will fully retire this Jan! Absolutely LOVE it!!

Also sold our house and moved a year ago Jan to a bigger place. I now have an entire good-sized bedroom for an HO layout.

How the heck are you?



Country: USA | Posts: 55 Go to Top of Page

hon3_rr
Fireman

Premium Member


Posted - 07/07/2015 :  11:14:59 AM  Show Profile  Reply with Quote
I'm really liking the 'rebuild' of this classic. Great to see modifications coupled with wonderful craftsmanship. Looking forward to seeing how you handle the structure build.

-- KP --
Life is to short to build all of the models I want to.

Country: USA | Posts: 7174 Go to Top of Page

railman28
Fireman



Posted - 07/07/2015 :  11:59:14 AM  Show Profile  Reply with Quote
Sharp Dwight. Very sharp indeed.

It's only make-believe

Edited by - railman28 on 07/08/2015 1:40:55 PM

Country: USA | Posts: 5232 Go to Top of Page

NVNGRR
Engine Wiper

Premium Member


Posted - 07/07/2015 :  1:10:20 PM  Show Profile  Visit NVNGRR's Homepage  Reply with Quote
Bob, thank you but the credit goes to Dwight, not me.

Kevin Miller
Winlock, WA

Country: USA | Posts: 362 Go to Top of Page

bitlerisvj
Fireman

Posted - 07/08/2015 :  09:49:52 AM  Show Profile  Reply with Quote
Hi Dwight, that is a very very nice platform. I am sure you will do the structure itself justice. I will warn you to not do what George did on his original Icing station and that is he made no provision at all for the ice to be brought onto the deck. The second Icing station George did get a trap door that allowed ice to be brought onto the deck. I am sure you already considered this, but just in case, this is a reminder.
Here is my Icing Station based on the FSM model.
http://www.railroad-line.com/discussion/topic.asp?TOPIC_ID=21438&whichpage=71
Regards, Vic B.



Country: USA | Posts: 1437 Go to Top of Page

Bill Gill
Fireman



Posted - 07/08/2015 :  10:09:11 AM  Show Profile  Reply with Quote
Cool! Looks very good and solid


Edited by - Bill Gill on 07/08/2015 10:09:46 AM

Country: USA | Posts: 2683 Go to Top of Page

BurleyJim
Fireman

Premium Member


Posted - 07/08/2015 :  10:32:22 AM  Show Profile  Reply with Quote
Outstanding workmanship.




Country: USA | Posts: 4624 Go to Top of Page

Dwight Ennis
Section Hand



Posted - 07/08/2015 :  12:40:14 PM  Show Profile  Visit Dwight Ennis's Homepage  Reply with Quote
quote:
Originally posted by bitlerisvj

Hi Dwight, that is a very very nice platform. I am sure you will do the structure itself justice. I will warn you to not do what George did on his original Icing station and that is he made no provision at all for the ice to be brought onto the deck. The second Icing station George did get a trap door that allowed ice to be brought onto the deck. I am sure you already considered this, but just in case, this is a reminder.
Here is my Icing Station based on the FSM model.
http://www.railroad-line.com/discussion/topic.asp?TOPIC_ID=21438&whichpage=71
Regards, Vic B.


In fact, there is provision in the original for ice to be brought up to the deck. It was common on such structures for the ice house to contain within it an internal elevator for that purpose. In this case, it would likely bring ice cakes up to the second story door on the deck level. Ice cakes would be moved from internal storage to the elevator, raised, and removed by the men on the deck for loading into waiting reefers.

Nice model you built. Congrats!



Edited by - Dwight Ennis on 07/08/2015 12:43:15 PM
