Now that work on my New Orleans Union Passenger Terminal is completed, its time to focus on the various support facilities that serviced it. Even though I felt at times that there wasn't much interest in my NOUPT, based on the number of comments, I nonetheless enjoyed presenting that project here on RR-Line. So much so, in fact, that I wanted to begin this new thread.

I debated on which forum to post this new series. In the end, I chose MR Construction, because completing this area of the layout will involve ballast, scenery, some backdrops, and lots of structures. I invite you to follow my progress and hope that you will leave feedback along the way.

Unlike the NOUPT thread, this one will focus more on completing the overall scene vs. step-by-step construction of individual structures. I want to work as quickly as possible, and documenting each step of each structure is very time-consuming. It will also coincide with updates to my own website. I hope you will find it interesting, entertaining, and maybe even educational.

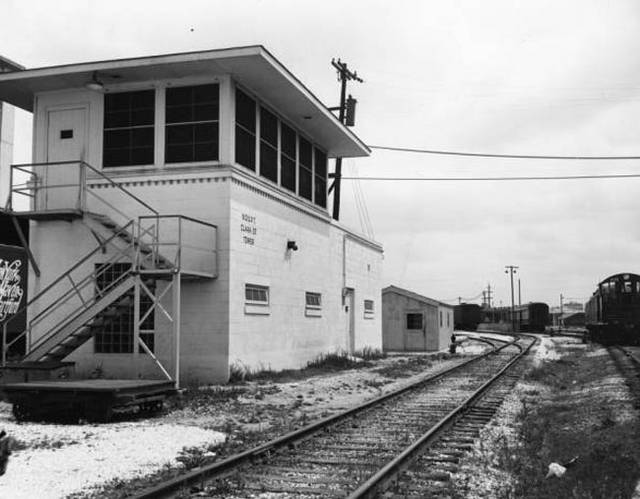

To kick things off, I want to share my newly completed Clara Street Tower. This tower was located at the 5-track yard throat which fed the station. Here are a few prototype photos.

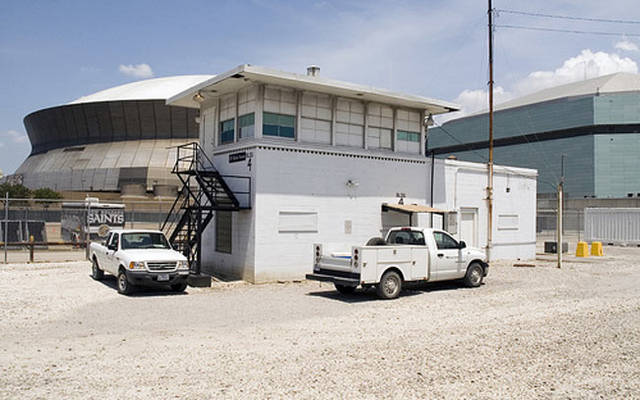

This next photo is more modern as evidenced by the super dome in the background. A few additions have been made to the tower, but it still stands relatively unchanged in more than 50 years.

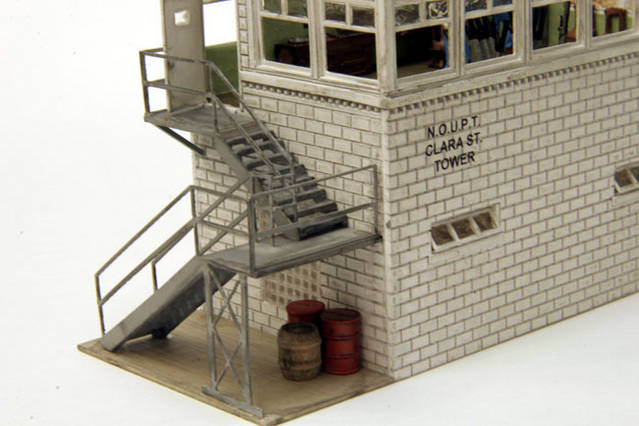

My model of the Clara Street Tower was laser cut by CMR, who also did the work on NOUPT. The plans were once again drafted by Dr. Nick Muff from original blueprints of the building. Even the stair assembly was laser cut in styrene.

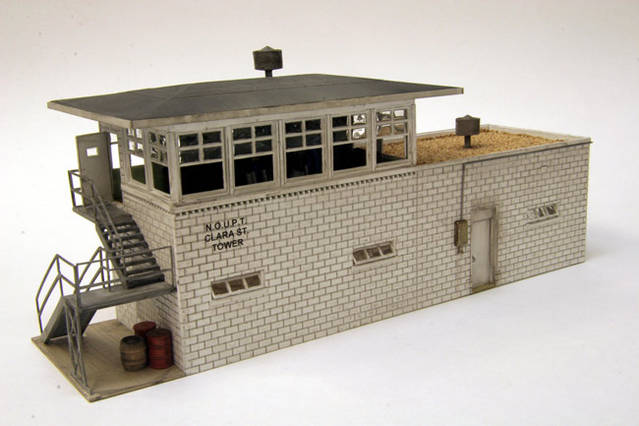

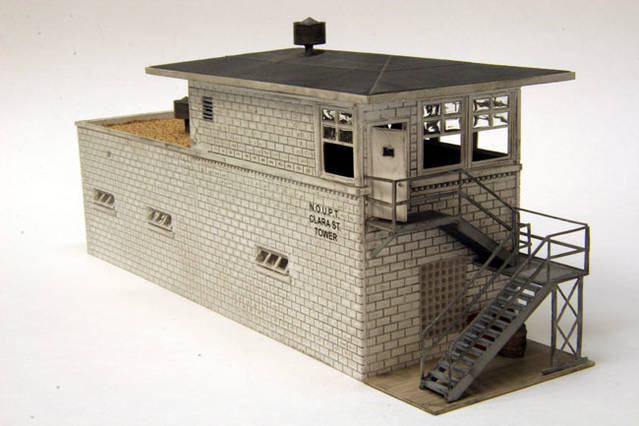

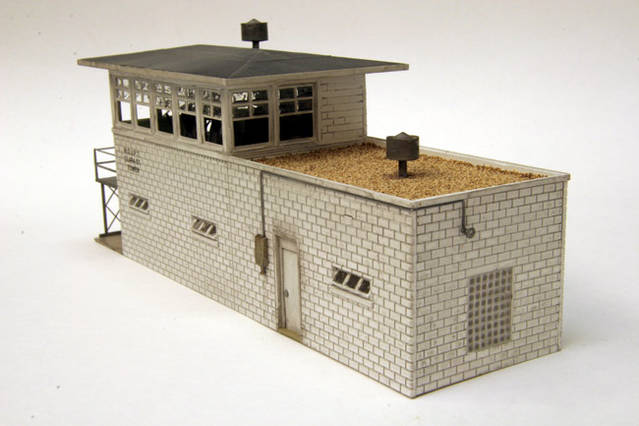

Here is the exterior of the finished tower. Notice the cool glass block windows. These were laser cut as well. I also like the tilting lower windows.

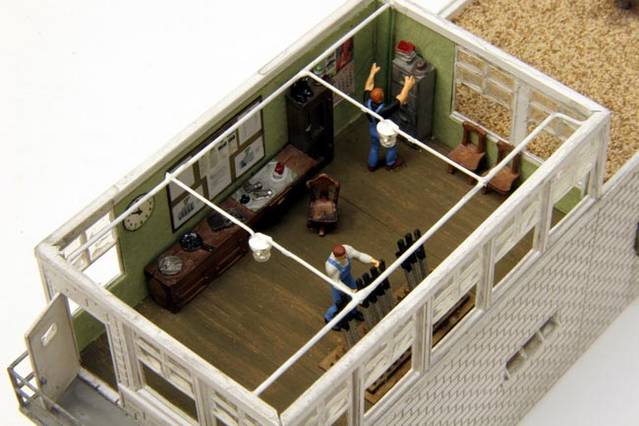

I added a full interior to the upper floor. Pieces of stationary paper were cut to fit the interior walls. The floors were made from stripwood.



All of the furniture pieces are FSM castings. The bulletin board, clock, and wall calendar were gleaned from Google image searches and scaled down to size. I used the same method in the NOUPT baggage building.



The interlocking machine is a laser kit made by American Model Builders.

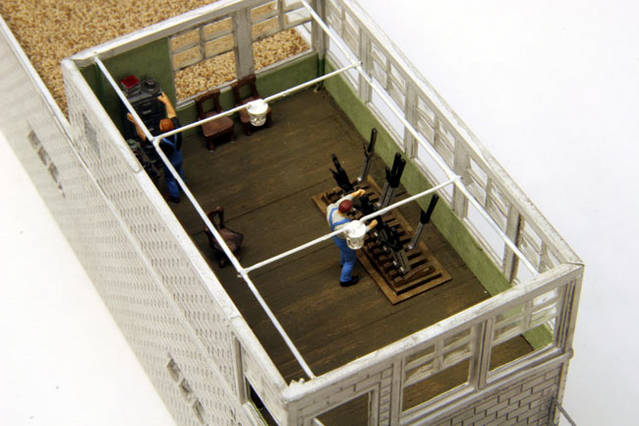

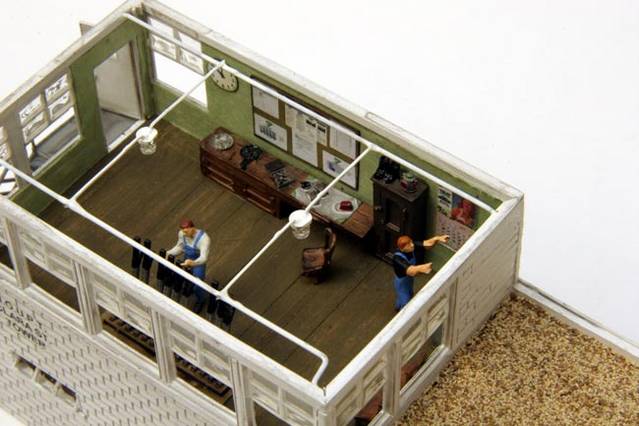

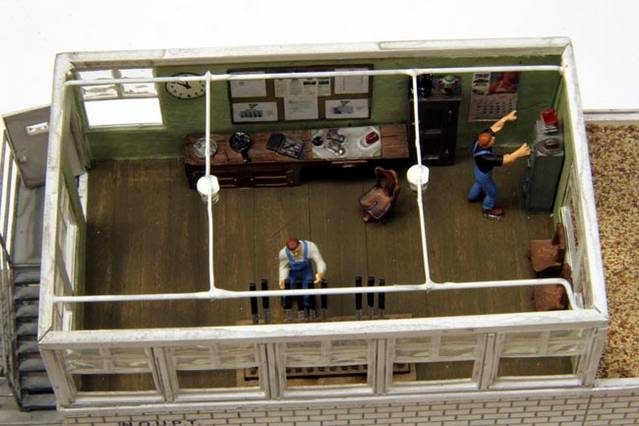

I wanted to make the roof removable, so I created this overhead lighting system from brass wire and LEDs. A resistor is wired under the floor. The wires were painted to match the ceiling and wall colors so that they would be less noticeable.

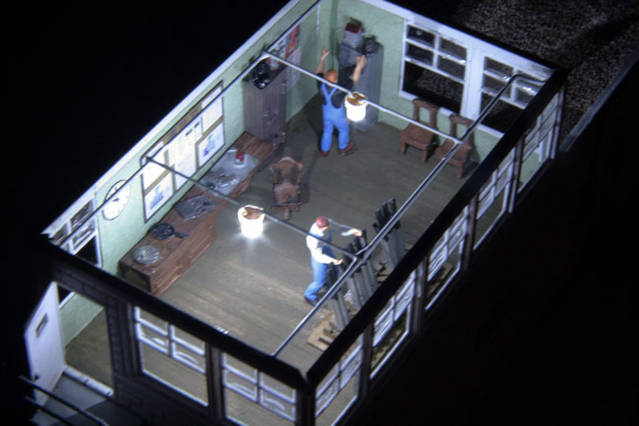

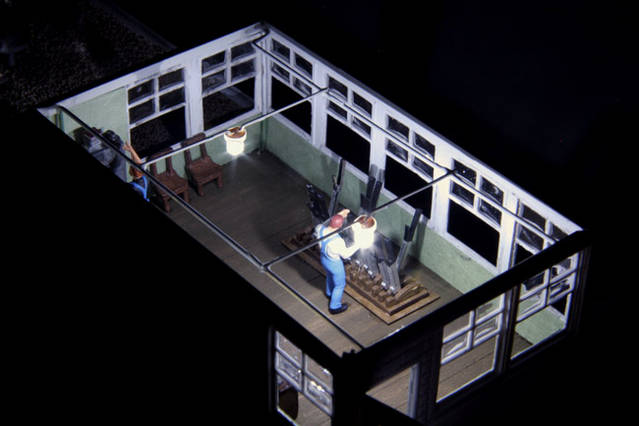

Here is the interior with the lights on.

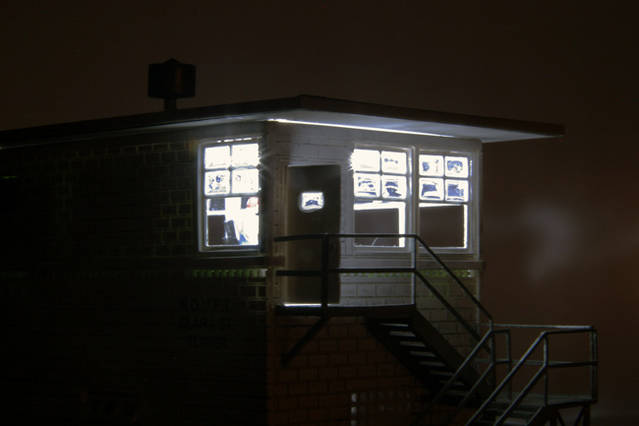

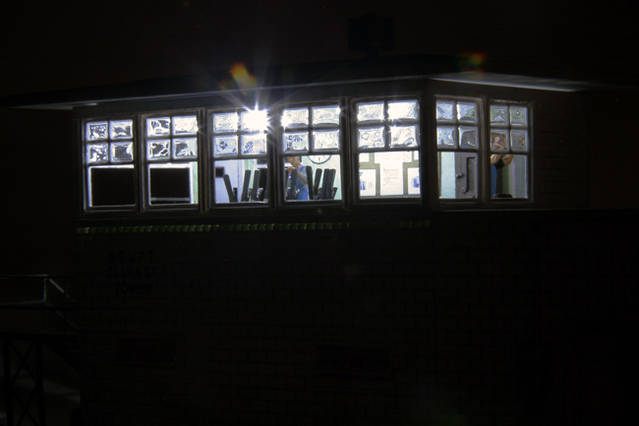

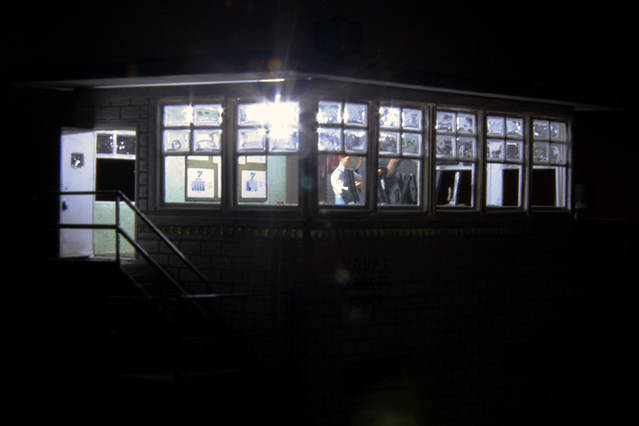

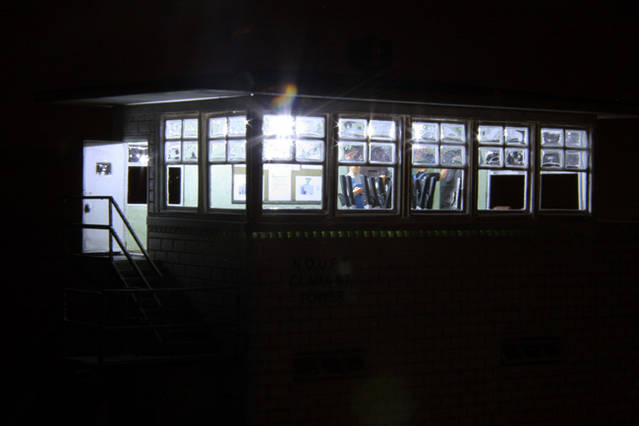

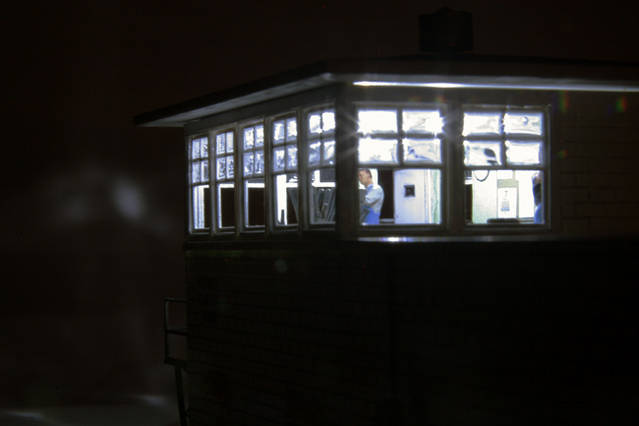

Lastly, here are several exterior views with the lights on. The window glass, by the way, was created with Gallery Glass from Hobby Lobby. I find it to be much thicker and easier to work with than the similar material available from Micro Mark.











My next project, which begins this weekend, will be the Railway Express Building. Because this is a much larger project, I will show my progress in steps. I hope you'll stay tuned!
