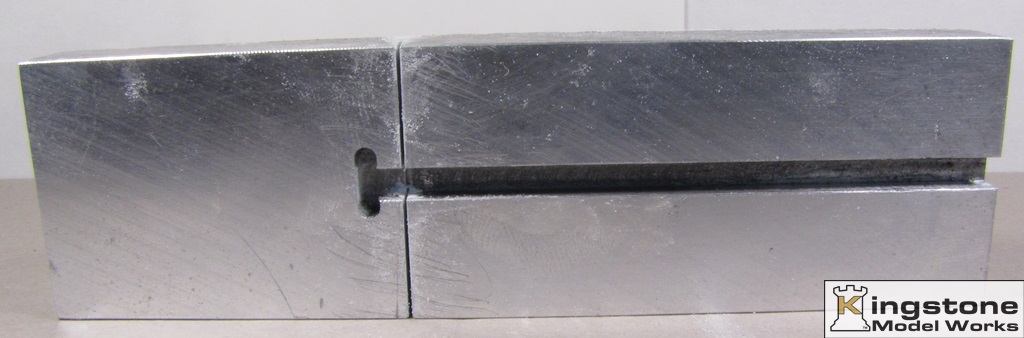

Today I made a jig for cutting the sticks to length. It's a piece of aluminum with a .155" wide by .155" deep slot. A small cross milling at the closed end provides a stop for the sticks to butt against. A slot .022" thick was cut .230" from the blind end end to guide a razor saw.

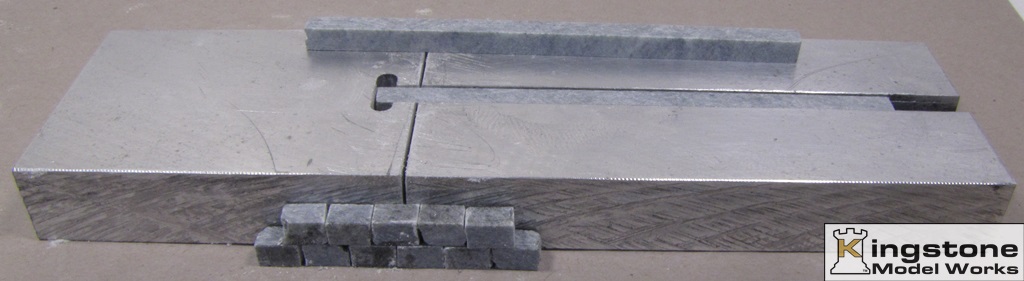

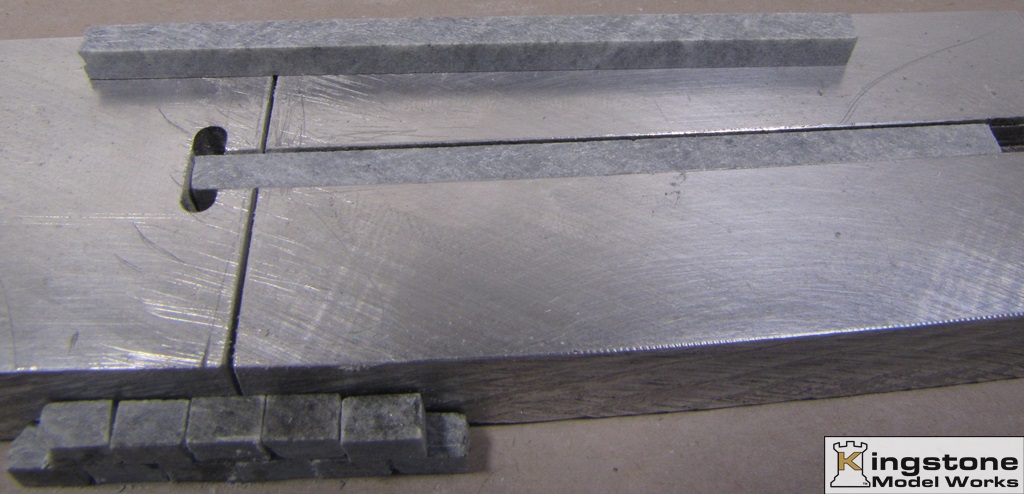

The first cut blocks and the jig loaded to to cut more.

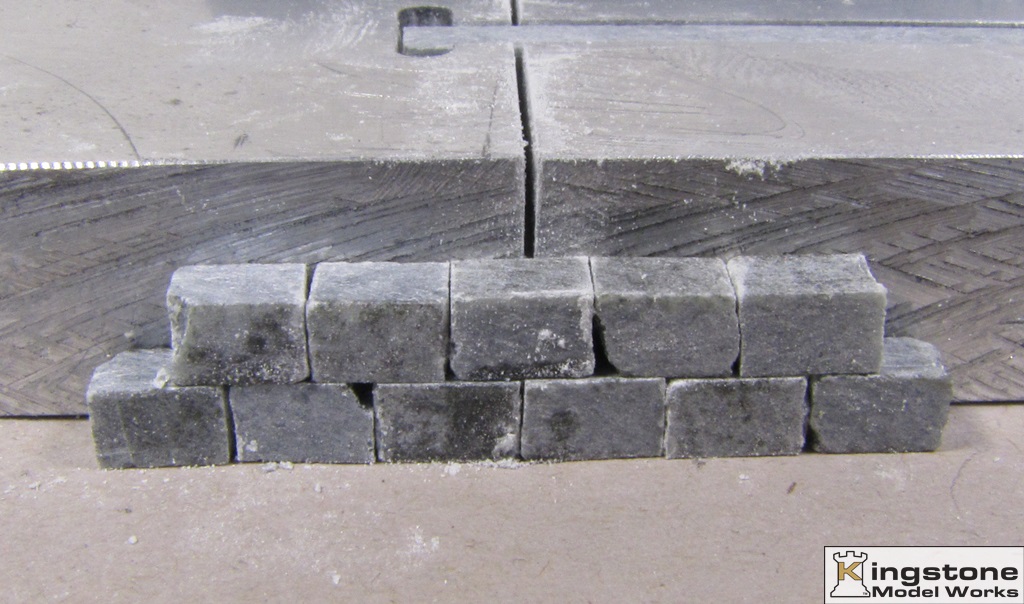

The first blocks laid up to see if this whole idea will work.



Next on the agenda is to cut a few hundred and glue to a trail wall to see how it'll all work out. So this will be the last post for a while until I get a test wall set up.

Bernd

WWG1WGA
Go to Top of Page

BurleyJim
Fireman

USA
5581 Posts

Posted - 12/05/2019 :  5:09:18 PM  Show Profile  Reply with Quote
My Taig mill doesn't change over to do horizontal milling, which is a bit of a bummer. HSS saw? I thought you were going to gang cut those blocks, after the first thousand, you'll be thinking that too. They do look super though!

Jim

Take the red pill

Edited by - BurleyJim on 12/05/2019 5:14:59 PM
Go to Top of Page

Carl B
Fireman

USA
3858 Posts

Posted - 12/05/2019 :  5:51:23 PM  Show Profile  Reply with Quote
Looks good to me! [:-thumbu]
Go to Top of Page

Frank Palmer
Fireman

USA
5908 Posts

Posted - 12/05/2019 :  7:22:12 PM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote

Bernd, you're too much with the make your own tools department.

Frank
Go to Top of Page

George D
Moderator

USA
16198 Posts

Posted - 12/05/2019 :  9:07:38 PM  Show Profile  Reply with Quote
Those blocks look good, Bernd. Have you ever thought about finding an easy way to do things?

George
Go to Top of Page

Philip
Fireman

USA
3229 Posts

Posted - 12/05/2019 :  9:09:35 PM  Show Profile  Visit Philip's Homepage  Reply with Quote
Nice jig! looks worthy!

Philip
Go to Top of Page

Bernd
Fireman

USA
3629 Posts

Posted - 12/05/2019 :  9:25:18 PM  Show Profile  Visit Bernd's Homepage  Reply with Quote
quote:
Originally posted by BurleyJim

My Taig mill doesn't change over to do horizontal milling, which is a bit of a bummer. HSS saw? I thought you were going to gang cut those blocks, after the first thousand, you'll be thinking that too. They do look super though!

Jim



The horizontal set up is an add on when you get the mill. The large base plate where everything sits on is what make it to be able to turn it into a horizontal mill.

Yes, HSS .020" thick slitting saw.

I haven't figured out a way to hold the loose strips to cut them to the correct length. Manual will have to do for now.

Bernd

WWG1WGA
Go to Top of Page

Bernd
Fireman

USA
3629 Posts

Posted - 12/05/2019 :  9:26:18 PM  Show Profile  Visit Bernd's Homepage  Reply with Quote
quote:
Originally posted by Carl B

Looks good to me! [:-thumbu]



Thanks Carl. Appreciate the thumbs up.

Bernd

WWG1WGA
Go to Top of Page

Bernd
Fireman

USA
3629 Posts

Posted - 12/05/2019 :  9:27:46 PM  Show Profile  Visit Bernd's Homepage  Reply with Quote
quote:
Originally posted by Frank Palmer


Bernd, you're too much with the make your own tools department.



Thirty years in the machine tool industry. You do pick a few ideas up along the way.

Bernd

WWG1WGA
Go to Top of Page

Bernd
Fireman

USA
3629 Posts

Posted - 12/05/2019 :  9:29:42 PM  Show Profile  Visit Bernd's Homepage  Reply with Quote
quote:
Originally posted by George D

Those blocks look good, Bernd. Have you ever thought about finding an easy way to do things?

George



Thanks George.

Well, there's always trying to get somebody else to do the hard stuff for you.

Bernd

WWG1WGA
Go to Top of Page

Bernd
Fireman

USA
3629 Posts

Posted - 12/05/2019 :  9:32:34 PM  Show Profile  Visit Bernd's Homepage  Reply with Quote
quote:
Originally posted by Philip

Nice jig! looks worthy!

Philip



Thanks Philip.

Works pretty good to. I can cycle one block in about 10 sec. Sixteen of those sticks will get me 196 blocks.

Bernd

WWG1WGA
Go to Top of Page

Michael Hohn
Fireman

USA
6516 Posts

Posted - 12/05/2019 :  9:55:42 PM  Show Profile  Visit Michael Hohn's Homepage  Reply with Quote
In theory you’d have all 196 in a little over 32 minutes working nonstop.

Probably a break would be recommended.

They look real.

Mike
Go to Top of Page

BurleyJim
Fireman

USA
5581 Posts

Posted - 12/05/2019 :  11:26:54 PM  Show Profile  Reply with Quote
With that short length, and the softer material, I think your manual jig is going to be the only answer. I can see those 'shorties' launching off that saw. Not a pretty sight.[:-cyclops]

Jim

Take the red pill

Edited by - BurleyJim on 12/05/2019 11:37:07 PM
Go to Top of Page

Pennman
Fireman

USA
4605 Posts

Posted - 12/06/2019 :  05:03:17 AM  Show Profile  Reply with Quote
Looking swell Bernd, nice cutting jig too.



Rich
Go to Top of Page

Bernd
Fireman

USA
3629 Posts

Posted - 12/06/2019 :  08:39:59 AM  Show Profile  Visit Bernd's Homepage  Reply with Quote
quote:
Originally posted by Michael Hohn

In theory you’d have all 196 in a little over 32 minutes working nonstop.

Probably a break would be recommended.

They look real.

Mike



Ah yes, theory. But I think I could do 32 minutes of cutting, take a "Yuengling Lager Break" and cut another 23, take a "Yuengling Lager Break", cut another 13, take a "Yuengling Lager Break", cut another 3 and finish the Yuengling Lager" six pack. Or something like that. [:-boggled] [:-crazy] [:-drunk]
