Welcome back! This installment marks the beginning of construction on the Gibbons Feed Mill. This massive facility was built long before the NOUPT, but continued to exist right along the station yard throat. During my NOUPT research, I noticed that the Gibbons Mill could be seen in a majority of vintage photos. Because of this, I wanted to be sure and include it, even though some degree of selective compression would be necessary.
I decided to use Walthers Modulars components to build the mill. Even though the window style is not exactly correct, it was close enough to convey the character of the prototype. The biggest advantage to the component approach was that it allowed me to maintain the relative proportions of the walls. I also liked the overall ease and speed of construction that would result from this system. I can say that I was very impressed with the overall quality of the components and would recommend them to anyone. Luckily I bought most of my packs when Walthers had them on sale for $3.98 (list for $9.98). The only thing that was aggravating to me was the fact that splice plates are not included in the wall packs. This required an additional 10 packs of wall columns to complete the project.

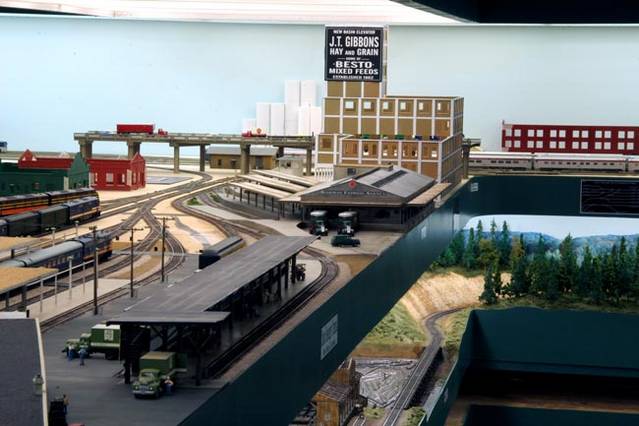

Here are two of the prototype photos I worked from. They were both taken from the “street side” of the mill. The NOUPT tracks would be on the opposite side of the building. The vehicles help date the photo.

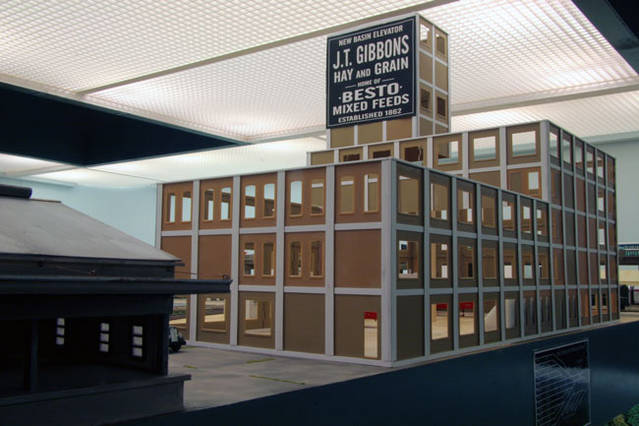

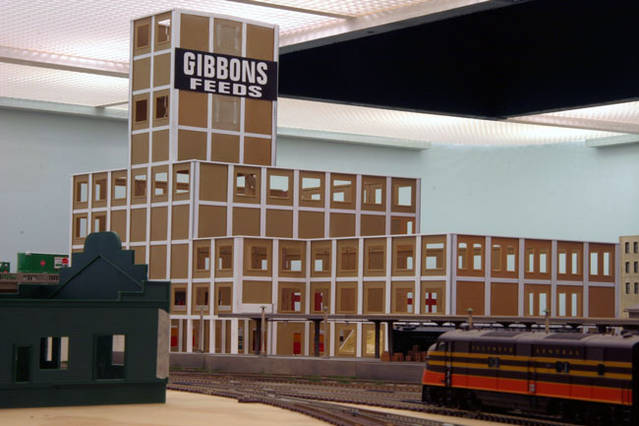

At this point, the basic shell of the mill is finished. Compare the model to the two prototype photos.

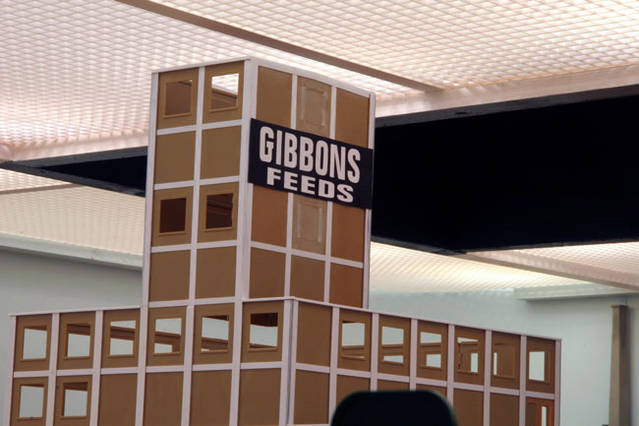

I especially like the large sign on the elevator wall. This was the original sign. During the early NOUPT era, the original sign had been painted over and replaced with this simplified one.

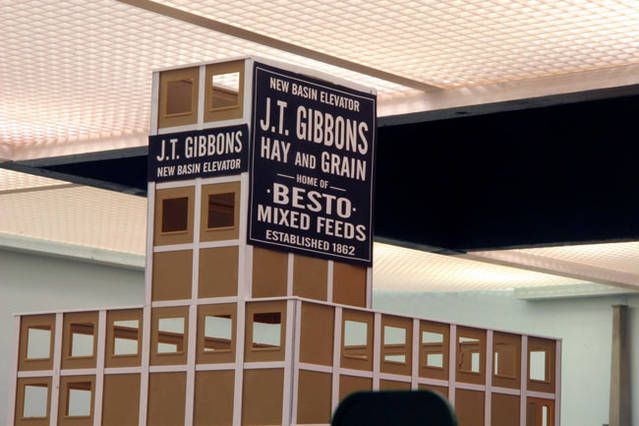

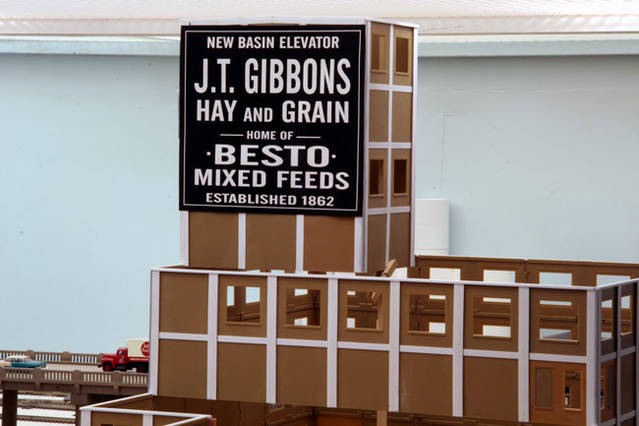

To be accurate, I should duplicate the simple lettering. I have already completed both versions of the artwork for this purpose. At this stage, I have simply taped a paper print-out to the wall to help me visualize the effect. Here are both versions.
I am leaning to the earlier version of the sign, simply because I love the urban look of large painted signs on brick. In either case, the actual sign will be printed on decal paper and applied accordingly. Another possibility is to apply the original sign, then fade it out with an airbrush. Afterwards, the newer decal can be installed. If you look closely at this photo again, you can see the original “MIXED FEEDS” lettering of the original showing through the paint. This would be a really cool effect!

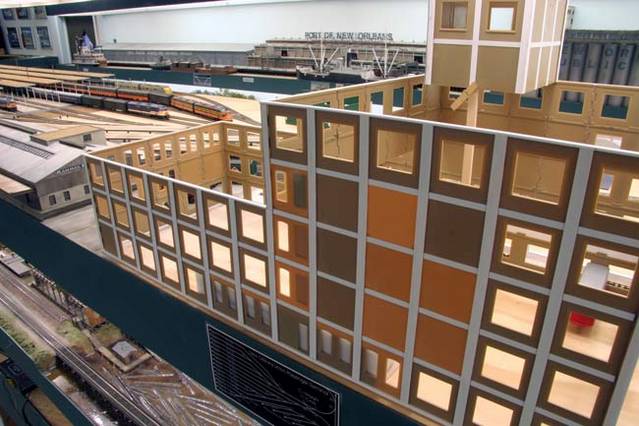

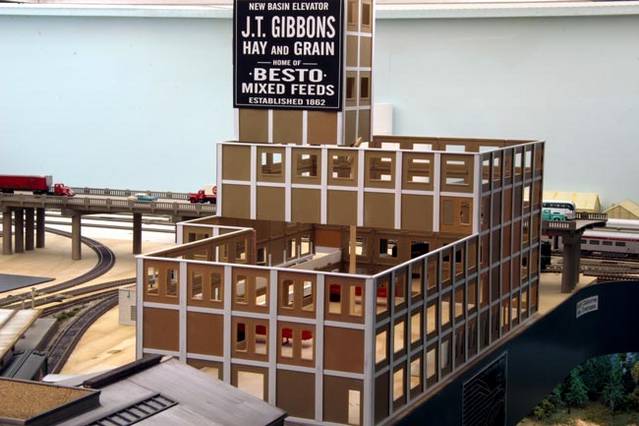

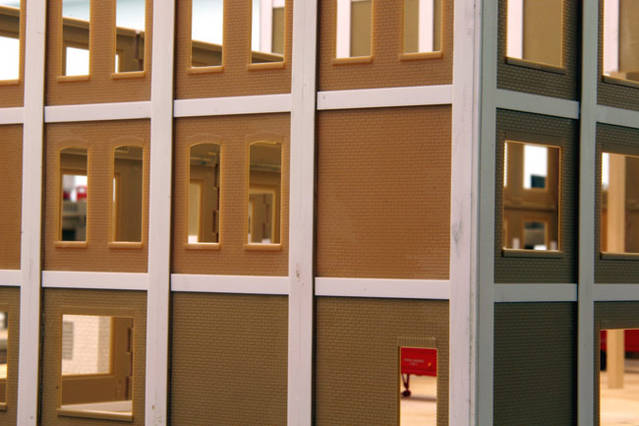

During construction, I overlaid numerous lengths of strip styrene to the brick pilasters. This not only looked more like the prototype, but also covered up tons of unsightly seams in the brick components. Horizontal styrene pieces were added for the same reasons. The entire building will be painted white, then weathered with an airbrush

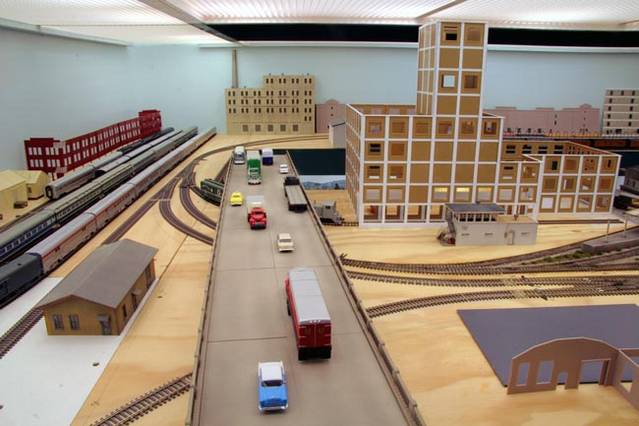

The mill featured a “drive-thru” loading area as well as a canopy-covered platform. Both can be seen in these photos (the future platform location has been drawn for clarity in the second photo).

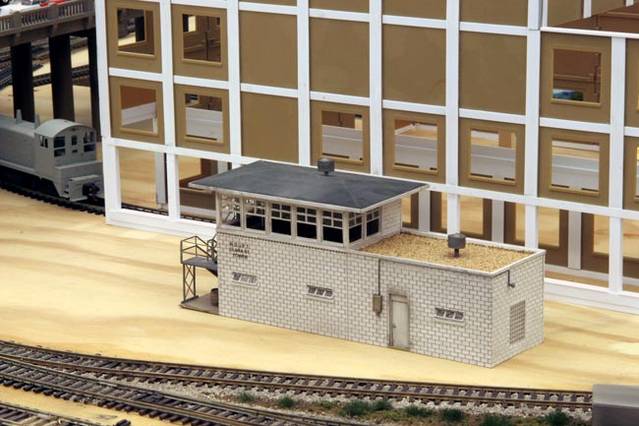

Notice the close proximity to the Clara Street tower. This is substantiated in this photo which I posted during my Clara tower build.

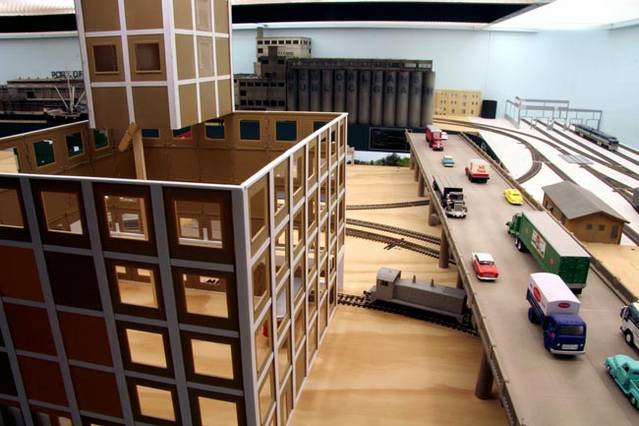

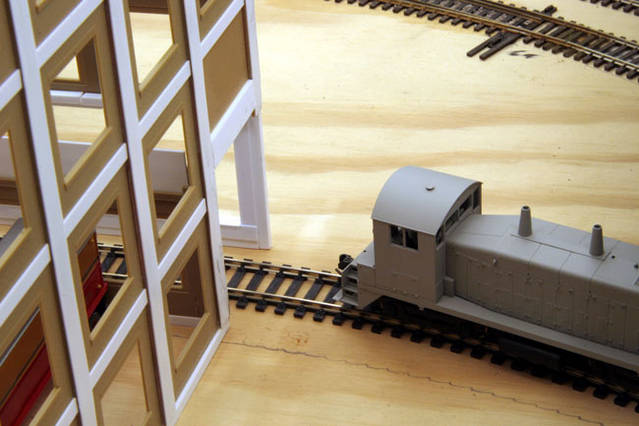

In this photo you can see where the spur track comes off of the main. I originally didn’t think I was going to have room to add a switch. Instead I was going to model bare ties with the tracks removed. By using a #4 turnout, I was able to negotiate an 18” radius curve to the mill. Since only small switchers and 40-foot cars will use this trackage, this is not an operational problem.

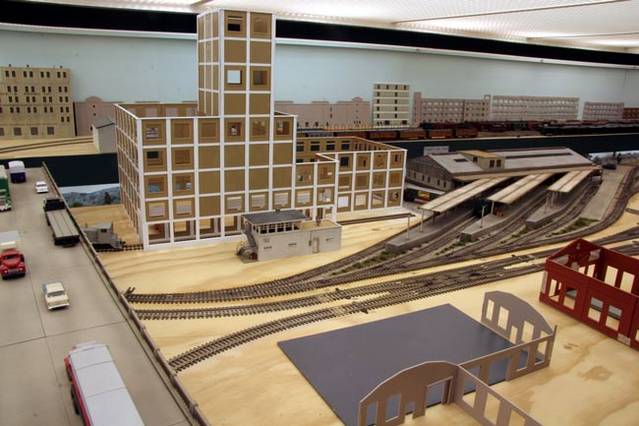

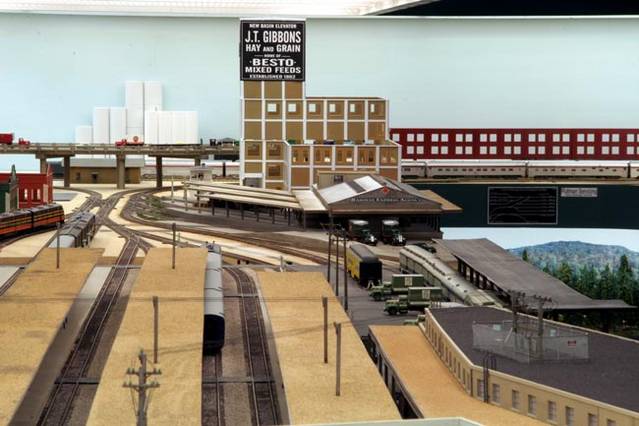

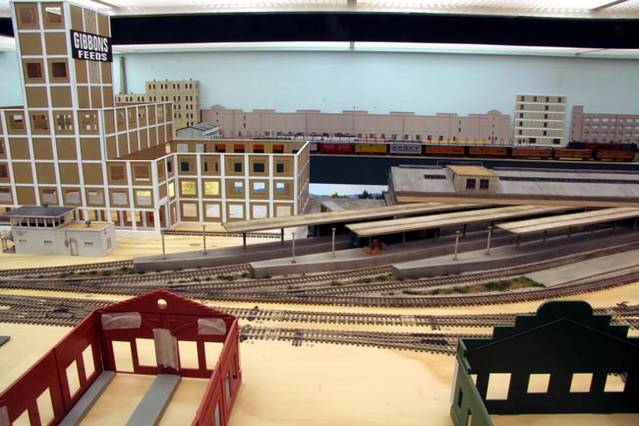

Here are several more photos of the mill. I really like the way it dominates this end of the peninsula. Once painted, weathered and detailed, it should be most impressive!

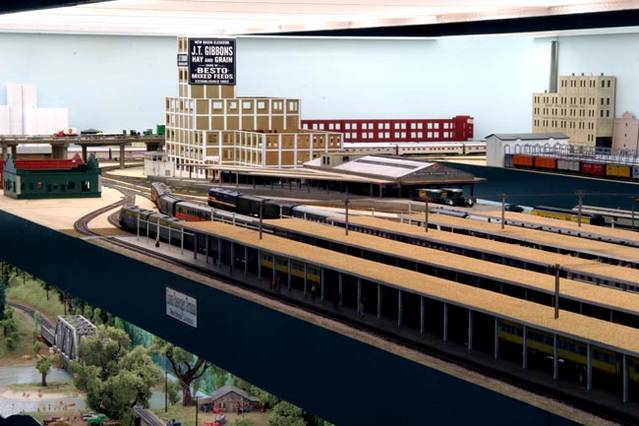

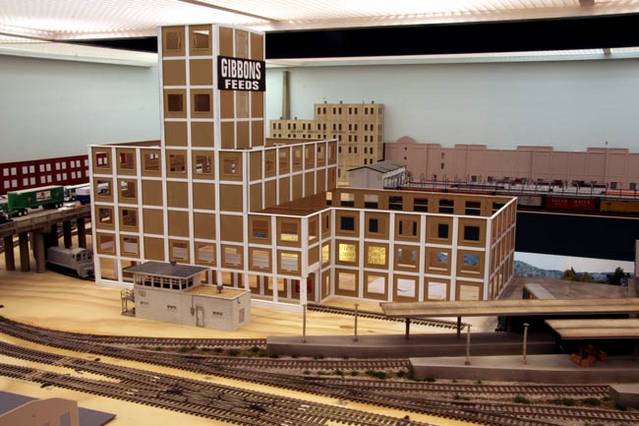

These last 4 photos will give you an idea of how massive this model really is. Even so, I think it makes the rest of the NOUPT complex appear even larger by comparison. Notice that the top of the elevator tower comes within 2 inches of the light valance!!

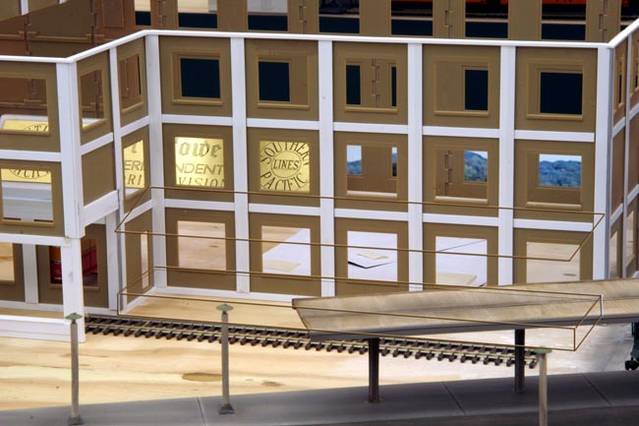

By this weekend I should have the structure painted and weathered. Installation of windows, doors, roofs, awnings and the loading dock will follow. I am rushing to wrap up construction before my May 21st clinic at the SER NMRA convention. Hopefully, I’ll make my deadline! Hope you guys enjoyed this episode!
|
